Sample Tables
Wallace have developed a quick-change range of test sample tables for use on the automatic benchtop Hardness Testers and the Handheld Durometer Stand. Each table is designed and made to securely hold a test sample to ensure standards-compliant results.
- Product Name
Sample Tables for Wallace Hardness Testers
- Overview

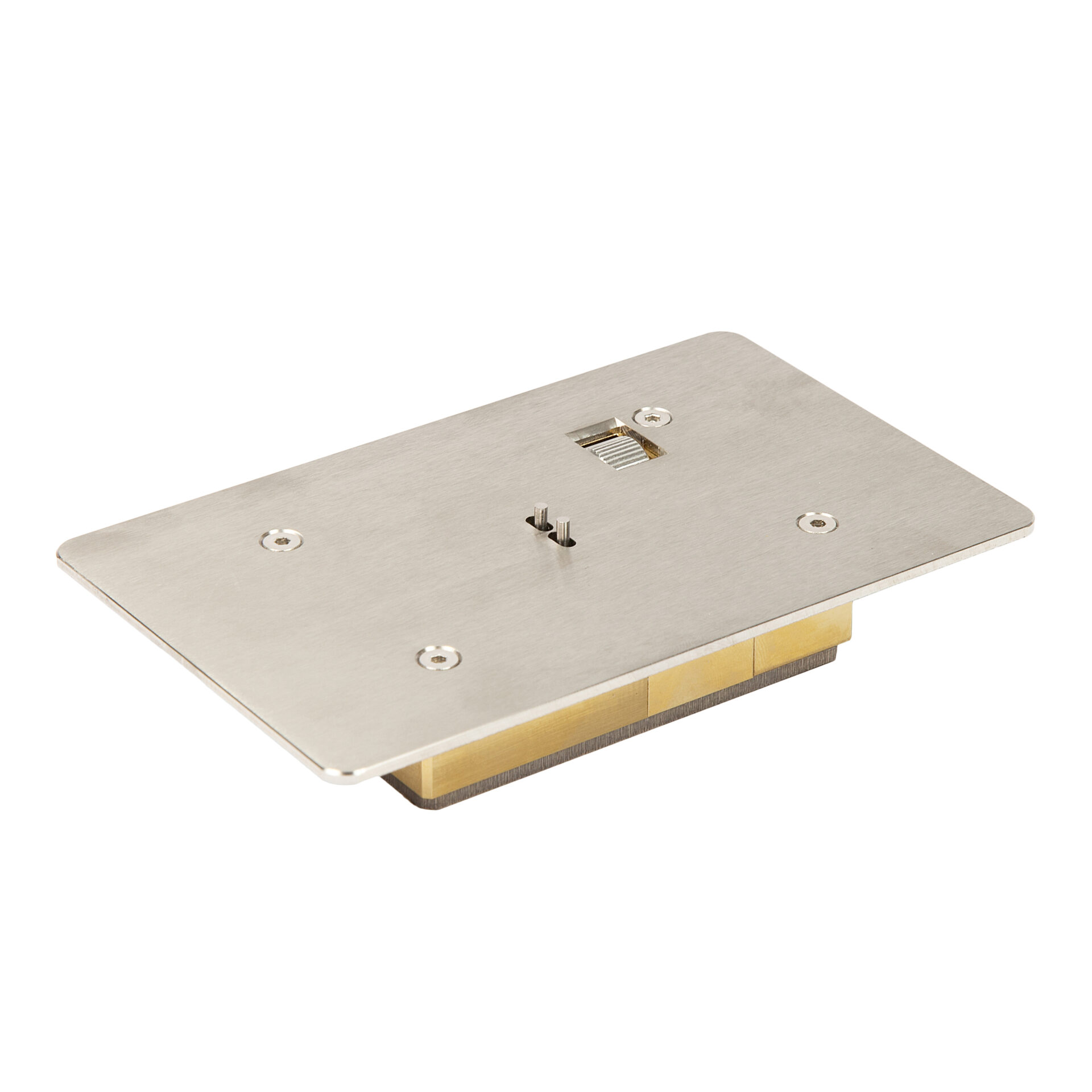

Sample tables will suit any of the benchtop Wallace Hardness Testers, including the H12, H14 and H17 models. The tables accurately locate onto precision dowels, so no extra fixings are required. Wallace offer custom design tables for specialist applications.
- Application
Precise positioning of small and large samples ranging from O-rings to solid extrusions and mouldings.
- Typical Lead Time
4-6 weeks (to be confirmed at time of quoting)
- What's Included?
- Sample Table
- Attachments
-
-
Wallace Instruments - Sample Table Data Sheet 267 KB
-
Specifications
| Description | O-Ring | Matrix | V Groove (1mm) | V Groove (4mm) | V Groove (8mm) | Oversized |
| Part Number | WAH19/ORA. | WAH19/5 | WAH19/2 | WAH19/3 | WAH19/4 | WAH19/7 |
| Dimensions (mm) | 23 (h) x 130 (w) x 80 (d) | 180 (w) x 80 (d) | 180 (w) x 76 (d) | 180 (w) x 76 (d) | 180 (w) x 76 (d) | 300 (w) x 76 (d) |
| Weight | 1.5kg | 1.2kg | 1.2kg | 1.2kg | 1.2kg | 1.8kg |
| Sample Size | 1-5.5mm Ø | Up to 35mm (h) | Up to 35mm (h) | Up to 35mm (h) | Up to 35mm (h) | Up to 35mm (h) |
| Sample Type | O-rings | Solid section extrusions and mouldings | Solid section extrusions and mouldings | Solid section extrusions and mouldings | Solid section extrusions and mouldings | Solid section extrusions and mouldings |
| Table Feature | Knurled wheel to locate centre of O-ring beneath indenter | 126 holes located on 10mm centres. Alternate holes are tapped to accept M3 threaded screws or drilled to 3mm to accept a dowel. | 1mm wide ‘V’ groove | 1mm wide ‘V’ groove | 1mm wide ‘V’ groove | Flat surface for easy positioning of large samples |
-
The minimum cross section thickness is 1mm and the maximum 6mm. The smallest internal diameter is 2mm. Bespoke tables can be manufactured for specific testing requirements. Contact us to tell us more about your unique specifications.
-
Yes, the sample tables can be used with any Wallace Instruments Hardness Tester.
-
When the table is used the maximum sample thickness is 35mm. We provide a range of extended head Hardness Testers for larger samples.
-
Yes, you can use the V-Groove table for both items, dependent on size of sample. The V-Groove table comes in the 3 sizes and can be made to measure also.
-
Yes, we can create sample tables for your specific requirements. Please contact us to discuss further.
