PRI O14 Ageing Chamber
Available for quotation
Ageing Chamber Type
Recommended Add-ons
Need help selecting the right configuration? Speak to our team to get the best configuration for you.

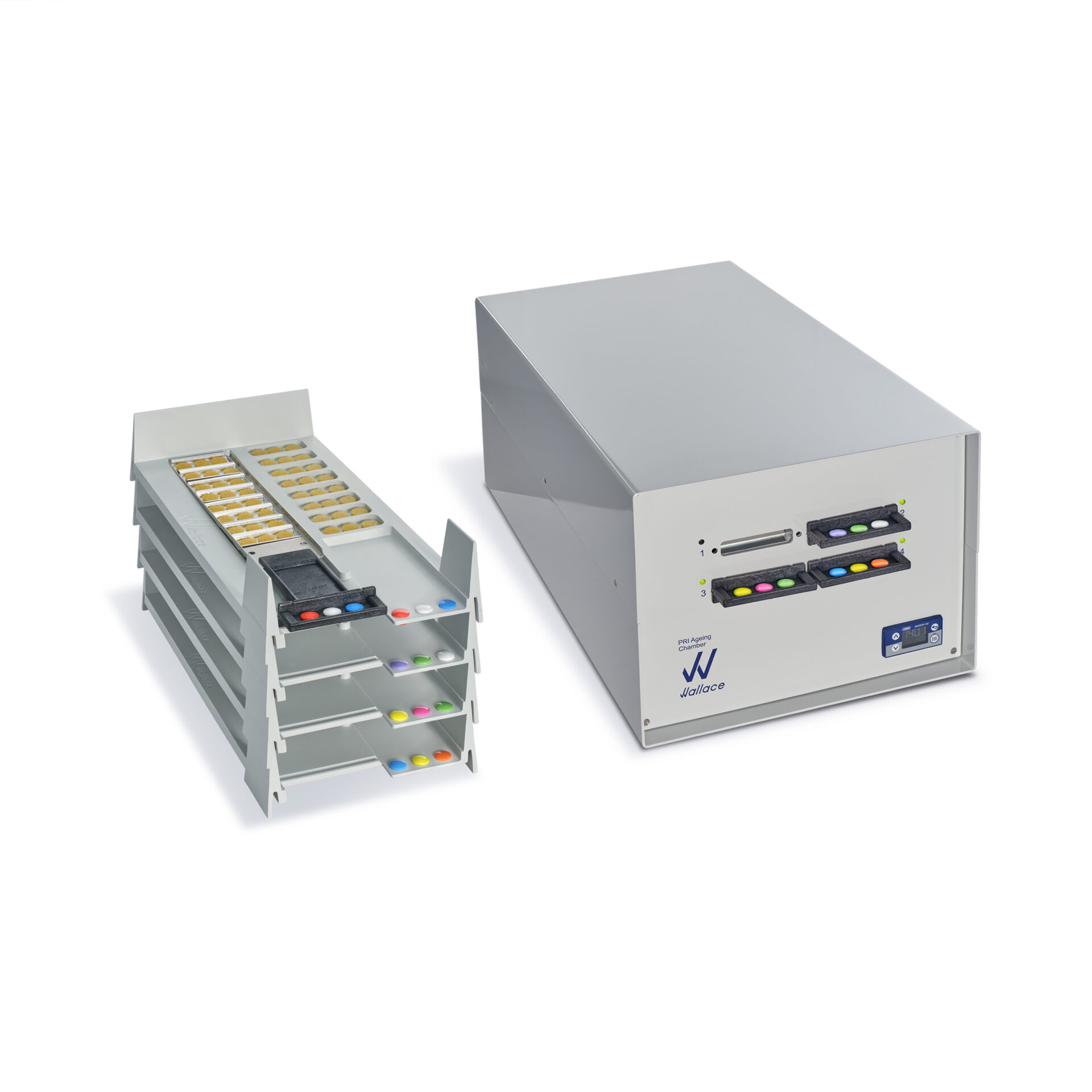

PRI O14 Ageing Chamber
The Wallace O14 Ageing Chamber reliably ages rubber samples in accordance with international standards, as an integral
part of determining the Plasticity Retention Index (PRI) of raw natural rubber. It is available as 2 models - O14-48 and O14-96.
- Product Name
O14 Ageing Chamber
- Overview
Available for 48 or 96 samples, each model is engineered for accurate, stable and reliable temperature control with individually time controlled drawers. Over-temperature cut out and easy to use traceability fixture. It is used in conjunction with the Wallace Rapid Plastimeter (P14) to determine the Plasticity Retention Index (PRI) of raw natural rubbers.
- Standards
BS ISO 2007, BS ISO 2930, ASTM D3194
- Application
Ageing natural rubber samples, forming an integral part of determining the Plasticity Retention Index (PRI) of raw natural rubber.
- Calibration Options
Manufacturer Calibration Certificate included as standard
- Typical Lead Time
4-6 weeks (to be confirmed at time of quoting)
- What's Included?
- O14 Ageing Chamber
- Aluminium Specimen Dishes (Qty. 60)
- Sample Drawers (Qty. 4)
- Air Filter (Qty. 1)
- Mains Lead
- User Manual
- Calibration Certificate
- What's Included?
- O14 Ageing Chamber
- Sample Traceability Fixture
- Aluminium Specimen Dishes (Qty. 120)
- Sample Drawers (Qty. 8)
- Air Filter (Qty. 1)
- Mains Lead
- User Manual
- Calibration Certificate
- Attachments
-
-
O14 Ageing Chamber Data Sheet 248 KB
-
Wallace Ageing Chamber
| Part Number | WAO14-96 | WAO14-48 |
| Dimensions (mm) | 230 (h) x 270 (w) x 490 (d) | 230 (h) x 270 (w) x 490 (d) |
| Weight | 23kg | 23kg |
| Maximum Power | 200W | 200W |
| Chamber Size (mm) | 12 (h) x 50 (w) x 280 (d) | 12 (h) x 50 (w) x 280 (d) |
| Chamber Temperature | 140°C ±0.2°C | 140°C ± 0.2°C |
| Number of Heating Chambers | 4 | 4 |
| Number of Dishes per Sample Drawer | 8 | 4 |
| Number of Samples per Sample Drawer | 24 max | 12 max |
| Number of Samples per O14 | 96 max | 48 max |
| Operating Temperature | 5 to 40°C; Altitude 2000m maximum | 5 to 40°C; Altitude 2000m maximum |
| Humidity Range | 10 to 80% RH non-condensing | 10 to 80% RH non-condensing |
| Temperature Recovery | <3 mins @ 140°C after sample insertion | < 3 mins @ 140°C after sample insertion |
Included
| O14-96 | O14-48 | |
| Ageing Chamber | 1 off | 1 off |
| Sample Drawers | 8 off (4 off in oven, 4 off in fixture) | 4 off standard capacity |
| Dishes | 120 off | 60 off |
| Traceability Fixture Trays | 4 off | Optional |
| Traceability Fixture Coloured Buttons | 80 off | Optional |
Housed in a robust steel case, the O14 features an aluminium block with four chambers that carry the drawer units and sample dishes. This block plus high-quality insulation creates a very stable temperature profile and minimises heat loss. A temperature of 140°C (as specified by the standard) is maintained by a PID Controller, which continuously displays the chamber temperature. A reliable air pump provides the air flow as required by the relevant standards.
-
No, however, you can purchase the traceability fixtures along with the aluminium dishes separately.
-
The O14-48 is supplied with 60 dishes and the O14-96 with 120 dishes. It is possible to buy additional dishes and these can be found here.
-
Yes, they are made out of aluminium and can be washed and re-used several times before needing to be replaced. Length of time to replacement will depend on testing frequency and quantity of samples being tested.
-
The circular dishes are used with the O14-48 Ageing Chamber and the rectangular dishes are used with the O-14-96 Ageing Chamber. To purchase additional supplies please quote part number O14-50 for the O14-48 and part number O14-61-2for the O14-96.
-
It is available as either 230v or 110v. Please specify at time of quotation which voltage you require.
