O14 Traceability Fixture
Wallace has designed a stackable traceability fixture which not only allows for accurate matching of the samples but also ease of handling of samples between sample preparation, ageing and plasticity testing. Matching is achieved by coloured buttons in the tray handle and the fixture tray.
- Product Name
O14 Traceability Fixture
- Overview
A set of four trays which includes the sample drawers that hold samples during the plasticity testing process from the O14 Ageing Chamber to the P14 Rapid Plastimeter. Designed to improve traceability of each sample using coloured dots to help identify each aged sample drawer with its unaged samples on the fixture tray.
- What's Included?
Sample Dishes 120 off (double sample dishes) Traceability Fixture Coloured Buttons 80 off (10 of each colour) - What's Included?
Sample Dishes 60 off (sample dishes) Traceability Fixture Coloured Buttons 80 off (10 of each colour)
Specifications
| Wallace Ageing Chamber—Traceability Fixture Set | ||
| Part Number | WAO14-FIXTURE | WAO14-FIXTURE-48 |
| Description | O14-96 Traceability Fixture Set | O14-48 Upgrade Traceability Fixture Set |
| Dimensions (mm) | 182 (h) x 162 (w) x 337 (d) | 182 (h) x 162 (w) x 337 (d) |
| Weight | 3.5kg | 3.5kg |
| Number of Traceability Trays | 4 | 4 |
| Number of Ageing Sample Drawers | 8 (high capacity drawers) | 4 |
| Number of Dishes per Sample Drawer | 8 | 4 |
| Number of Samples per Sample Drawer | 24 max. | 12 max. |
| Number of Samples per O14 | 96 max. | 48 max. |
| Included | ||
| Sample Dishes | 120 off (double sample dishes) | 60 off (sample dishes) |
| Traceability Fixture Coloured Buttons | 80 off (10 of each colour) | 80 off (10 of each colour) |
-
PRI testing requires accurate matching of aged and non-aged specimens. Any mix-up can invalidate results and lead to incorrect conclusions about a rubber's resistance to thermal oxidation. That's why we designed the O14 Traceability Fixture, to help prevent sample identification errors during the testing process.
-
The system uses colour-coded buttons in the tray handles and fixture trays, to allow operators to quickly and accurately match corresponding samples throughout preparation, ageing and testing stages.
-
The fixture is designed to integrate with the Wallace PRI testing workflow, including the O14 Ageing Chamber and the P14 Rapid Plastimeter.
-
Two versions are available:

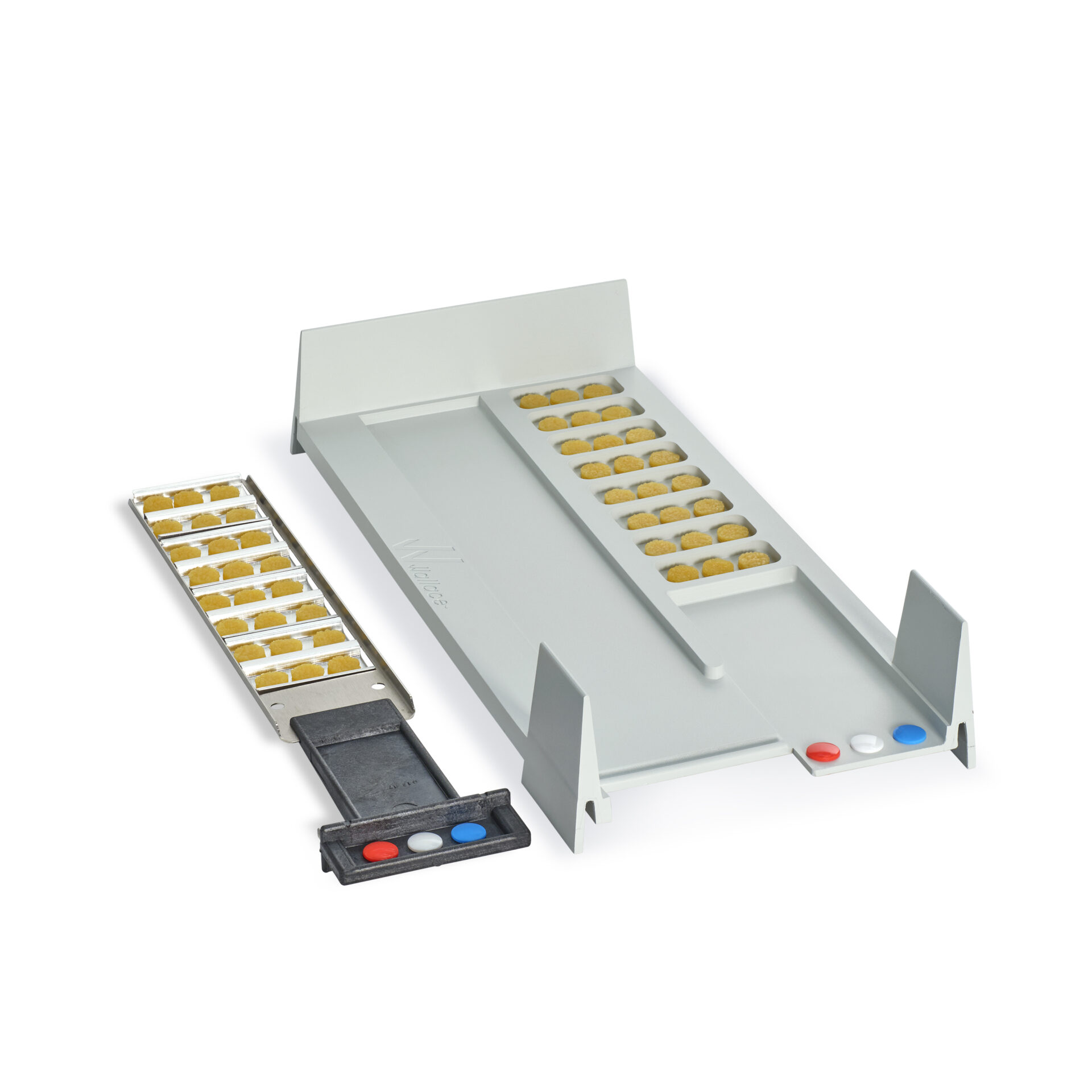

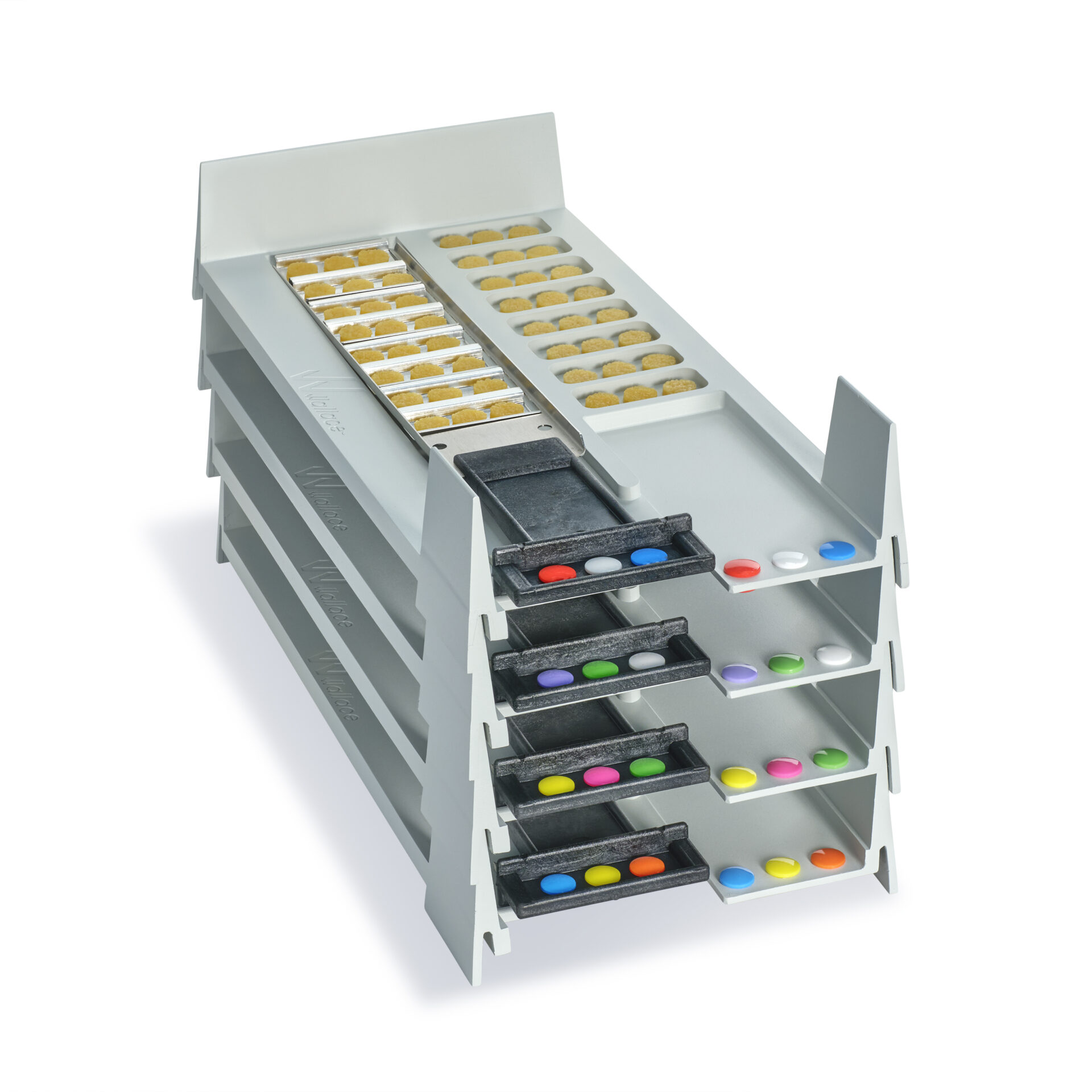

- O14-96 Traceability Fixture Set – up to 96 samples

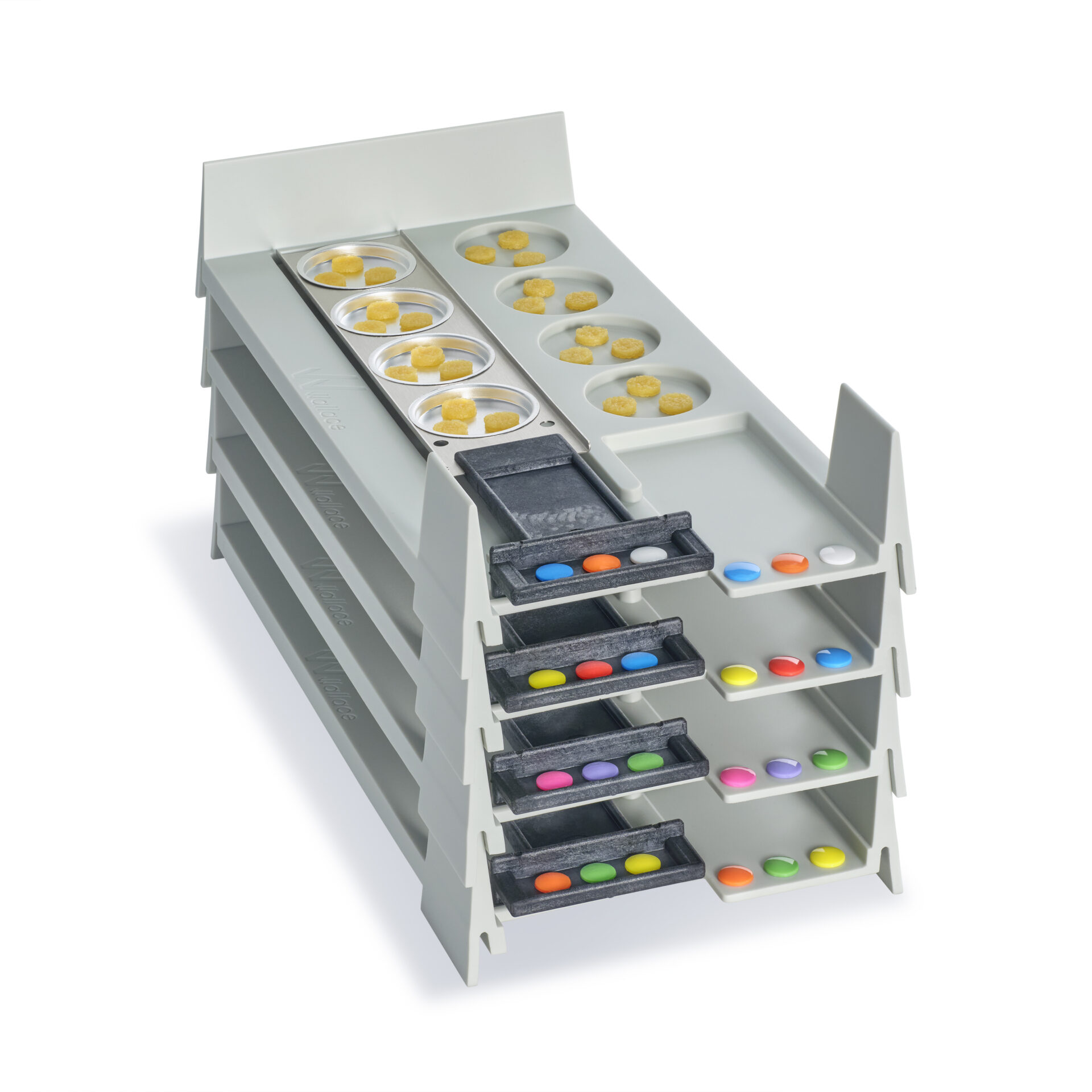

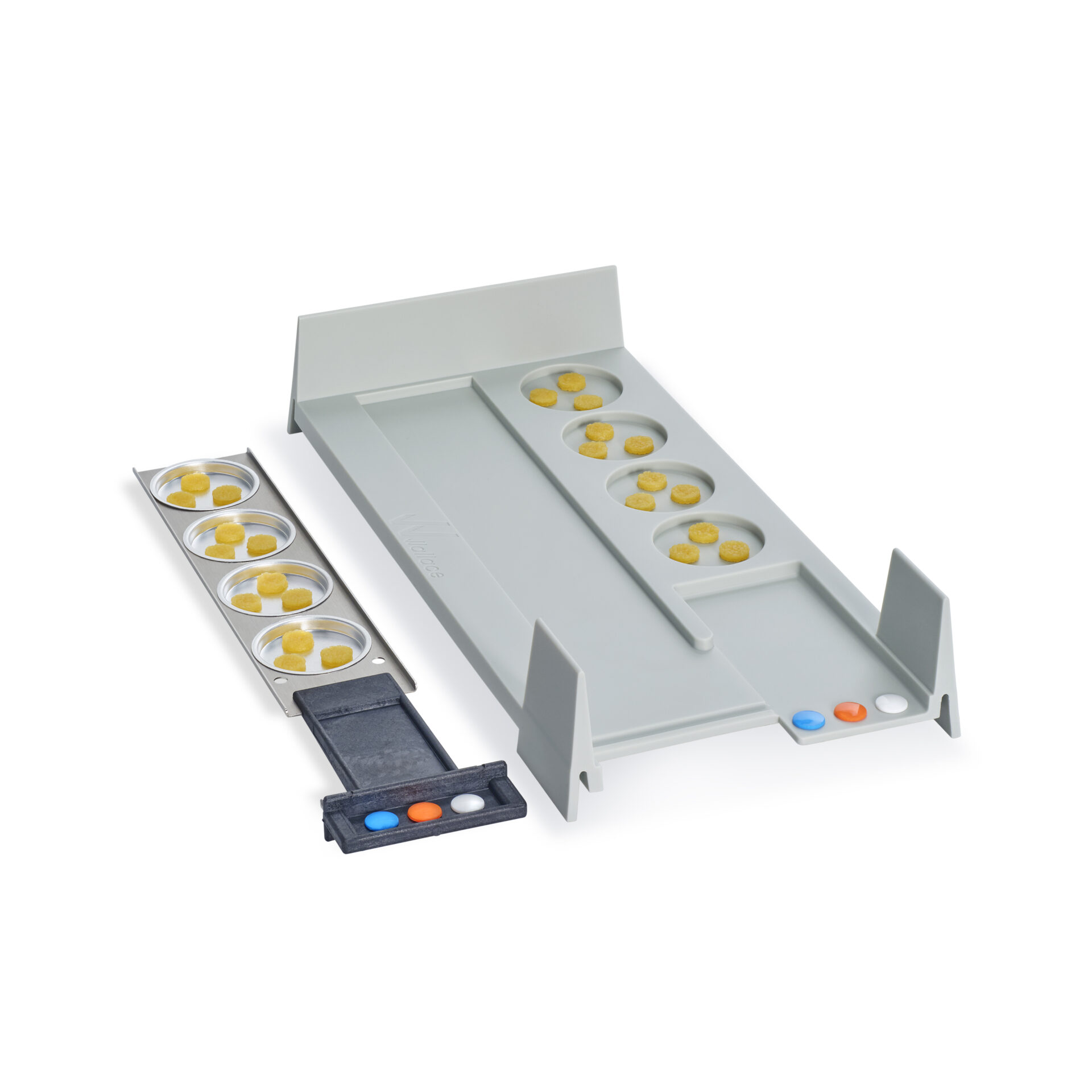

- O14-48 Traceability Fixture Set – up to 48 samples
-
Yes. The stackable design helps save bench space and allows efficient processing of large numbers of samples during routine PRI testing.
-
The fixture simplifies sample movement between preparation, ageing and plasticity testing stages, helping laboratories reduce handling time and minimise errors.
-
The fixture is designed to be simple to use, with colour-coded identification making sample tracking straightforward for both experienced and new operators. If you have any questions please feel free to contact us and we are happy to provide assistance and run through the PRI testing process.
-
Yes, a simple wipe down with a damp cloth is all that is needed. Ensure the fixture and trays are completely dry before starting testing.
