Spacer for Shawbury-Wallace Jig

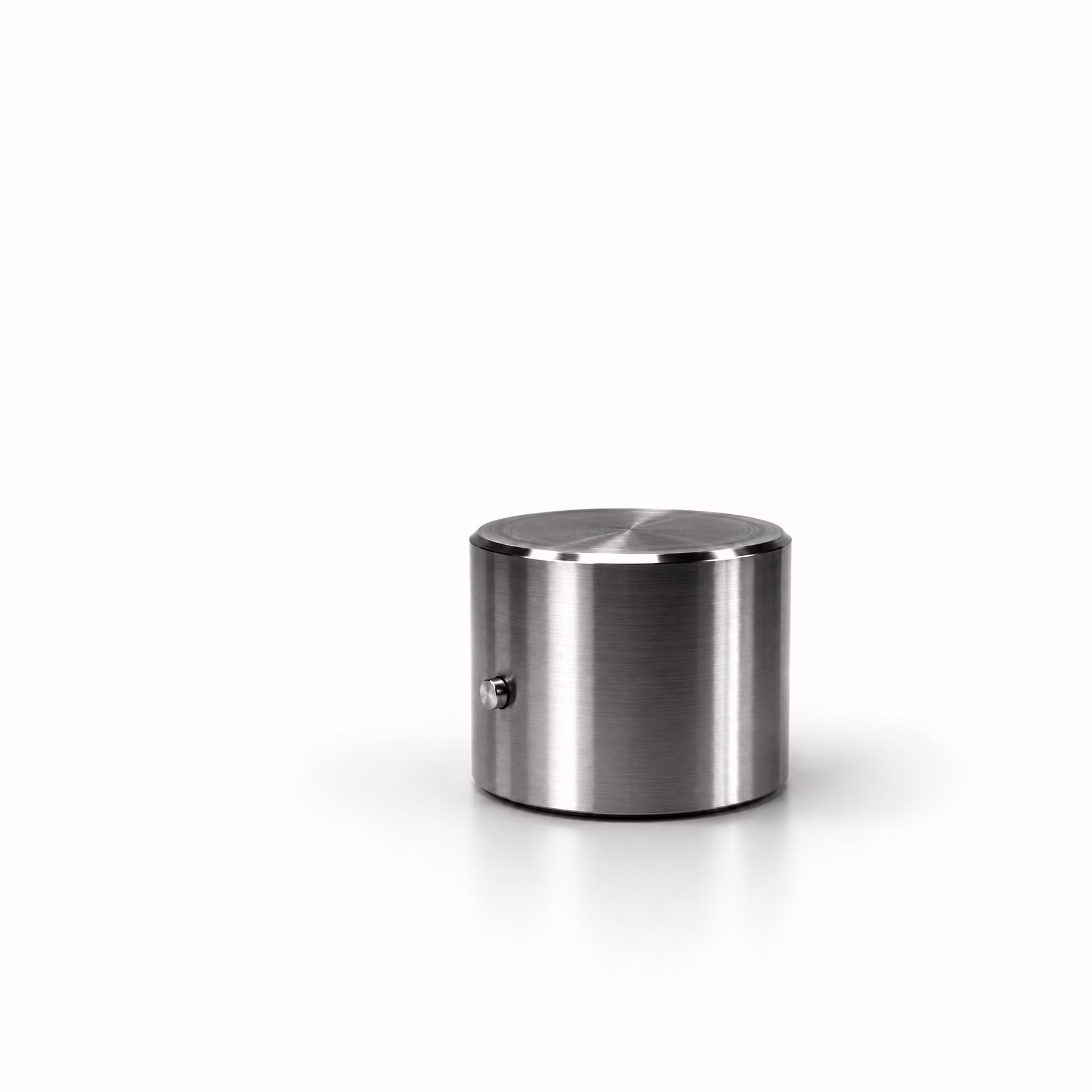

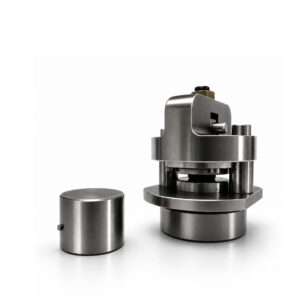

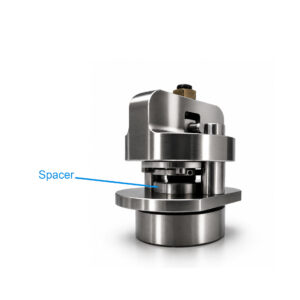

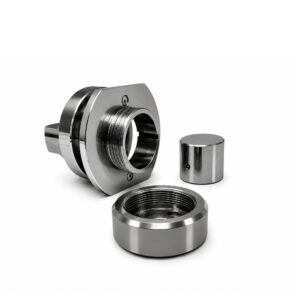

This is a spacer used with the fixed height Shawbury-Wallace Stress Relaxation Jig on the Compression Stress Relaxometer.
- Product Name
Fixed Height Spacer for Shawbury-Wallace CSR Jig
- Overview
This fixed height spacer's size is determined by the sample size and the percentage compression required.
- Typical Lead Time
4-6 weeks (to be confirmed at time of quoting)
- Whats Included?
- Spacer
Specifications
| Range of Spacers for Fixed Height Jigs (WAC11/1) | |||
| Part Number | Sample Height (mm) | % Compression | Spacer Height (mm) |
| WAC11/1-1-1A | 12.50 | 20% | 26.00 ± 0.05 |
| WAC11/1-1-1B | 6.30 | 20% | 30.96 ± 0.05 |
| WAC11/1-1-1C | 12.70 | 20% | 25.84 ± 0.05 |
| WAC11/1-1-1D | 6.35 | 20% | 30.92 ± 0.05 |
| WAC11/1-1-1E | 12.50 | 25% | 26.63 ± 0.05 |
| WAC11/1-1-1F | 6.30 | 25% | 31.28 ± 0.05 |
| WAC11/1-1-1G | 12.50 | 15% | 25.38 ± 0.05 |
| WAC11/1-1-1H | 6.30 | 15% | 30.65 ± 0.05 |
| WAC11/1-1-1J | 13.00 | 25% | 26.25 ± 0.05 |
| WAC11/1-1-1K | 13.00 | 35% | 27.55 ± 0.05 |
| WAC11/1-1-1L | 1.00 | 10% | 35.10 ± 0.05 |
| WAC11/1-1-1M | 3.50 | 25% | 33.38 ± 0.05 |
| WAC11/1-1-1N | 6.30 | 40% | 32.22 ± 0.05 |
| WAC11/1-1-1P | 2.00 | 25% | 34.50 ± 0.05 |
| WAC11/1-1-1Q | 7.00 | 10% | 29.70 ± 0.05 |
| WAC11/1-1-1R | 12.70 | 25% | 26.47 ± 0.05 |
| WAC11/1-1-1S | 6.00 | 25% | 31.50 ± 0.05 |
| WAC11/1-1-1AA | 6.30 | 30% | 31.59 ± 0.05 |
| WAC11/1-1-1AB | 6.30 | 50% | 32.85 ± 0.05 |
| WAC11/1-1-1AC | 6.25 | 40% | 32.25 ± 0.05 |
| WAC11/1-1-1AE | 10.00 | 15% | 27.50 ± 0.01 |
| WAC11/1-1-1AF | 10.00 | 20% | 28.00 ± 0.01 |
| WAC11/1-1-1AG | 10.00 | 25% | 28.50 ± 0.01 |
| WAC11/1-1-1AH | 12.50 | 15% | 25.38 ± 0.01 |
| WAC11/1-1-1AJ | 12.50 | 20% | 26.00 ± 0.01 |
| WAC11/1-1-1AK | 12.50 | 25% | 26.63 ± 0.01 |
| WAC11/1-1-1AL | 2.65 | 25% | 34.01 ± 0.05 |
| WAC11/1-1-1AN | 10.00 | 30% | 29.00 ± 0.01 |
