Piercing Tool

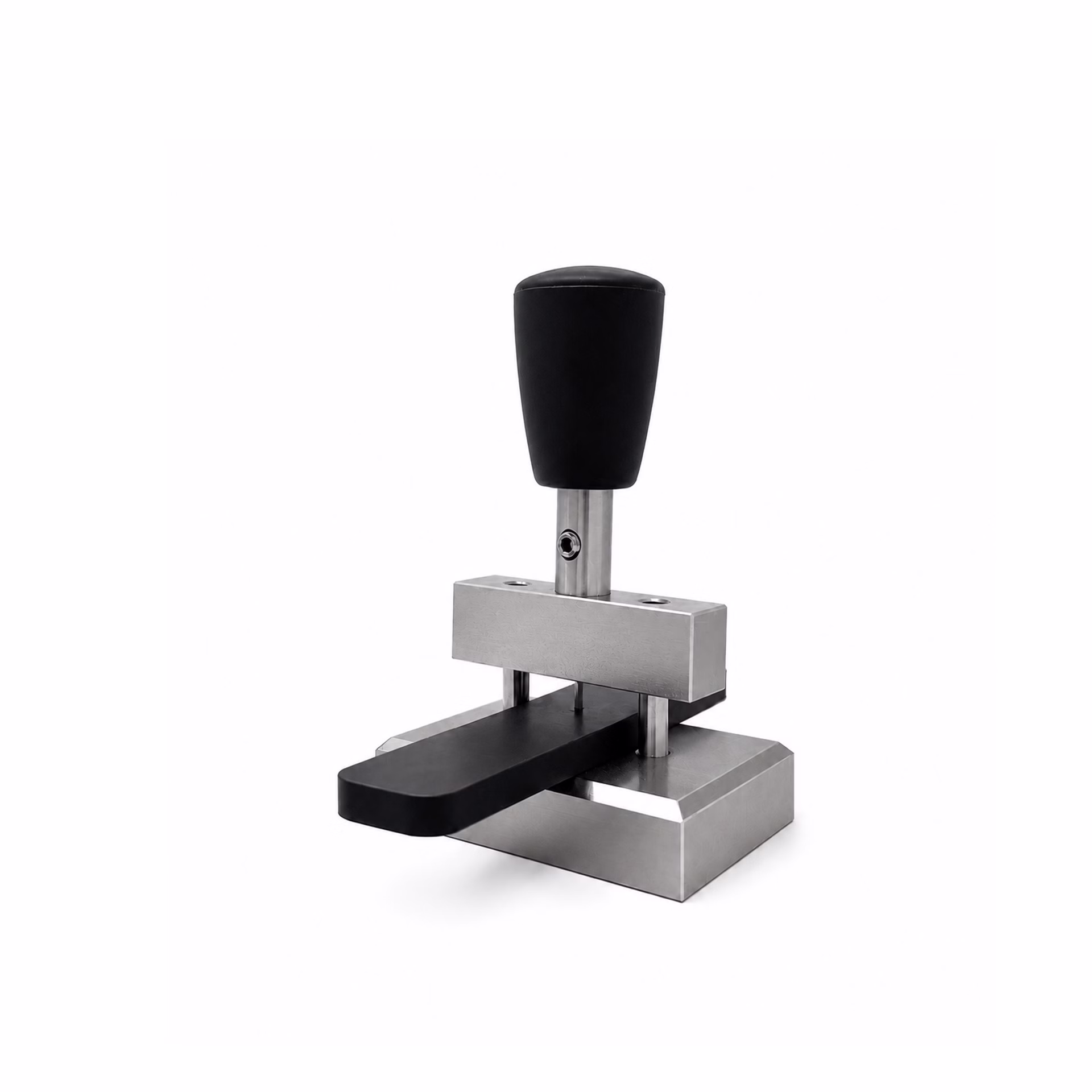

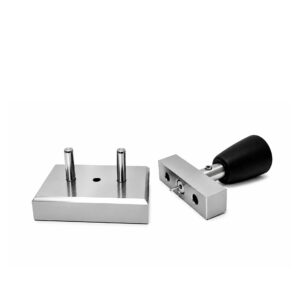

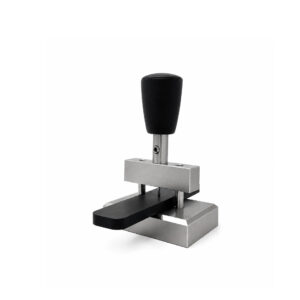

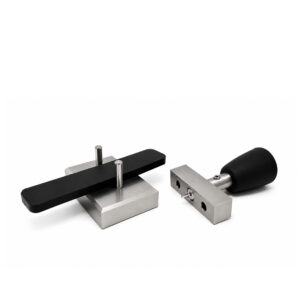

This piercing tool is designed for use on test samples being prepared for analysis in the Wallace DeMattia Flexing Machine.
- Product Name
Piercing Tool
- Overview
In a De Mattia flex test, we need every sample to start from the same point. The piercing tool puts a tiny notch into the rubber sample at a defined position, which acts as a starting crack.
Then when the sample is flexed repeatedly, the user can accurately measure how quickly that crack grows and compare materials reliably.
- Standards
ISO 132, ASTM 813
- Application
Used to create a controlled starter crack (or notch) in the rubber specimen so the test can measure how cracks grow under repeated flexing. The test evaluates crack initiation resistance, crack growth rate and fatigue resistance of rubber.
- Calibration Options
Not Applicable
- Typical Lead Time
4-6 weeks (to be confirmed at time of quoting)
This piercing tool is designed for use on test samples being prepared for analysis in the Wallace DeMattia Flexing Machine.
